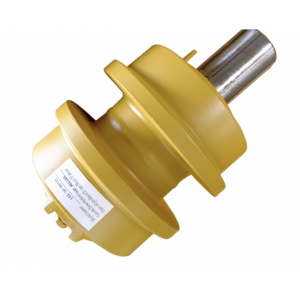

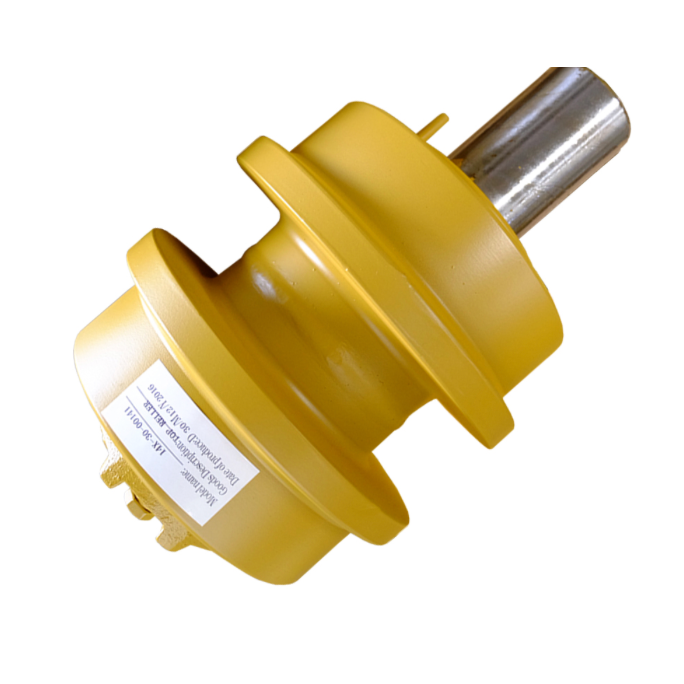

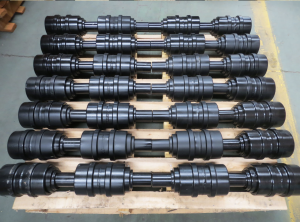

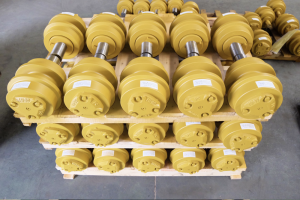

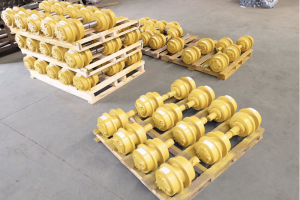

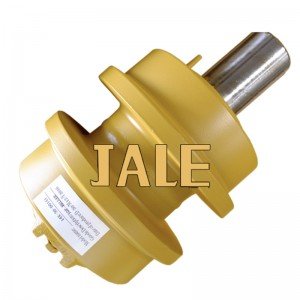

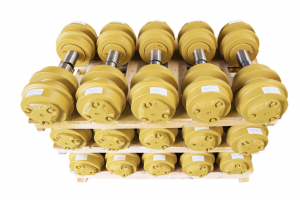

Excavator Carrier Roller Kobelco SK120 SK200-8 SK210

Short Description:

The function of carrier roller is to carry the track link upwards, make certain things are linked tightly and enable the machine to work fester and more steadily. Our products use special steel and produced by new process. Every procedure goes through strict inspection and the property of compressive resistance and tension resistance can be ensured.

Send email to us

Product Detail

Product Tags

Product Details

ITEM	Carrier Roller
MODEL	Kobelco SK120 SK200-8 SK210
MATERIAL	45#
COLOR	Black or Yellow
SURFACE HARDNESS	HRC48-58,DEPTH:6mm-12mm;Rmin:2mm
BRAND	JALE
WARRANTY TIME	24 Months
DELIVERY TIME	15-30 DAYS

Parameters

MACHINE	Q&T HARDNESS	I&H HARDNESS	CASE DEPTH
120T	HB271-322(HRC26-34) CORE min=238HB	HRC48-58	Depth min=7mm/HRC45 Radius depth min=3mm/HRC45
80T	HB271-322(HRC26-34) CORE min=238HB	HRC48-58	Depth min=7mm/HRC45 Radius depth min=3mm/HRC45
60T	HB271-322(HRC26-34) CORE min=238HB	HRC48-58	Depth min=7mm/HRC45 Radius depth min=3mm/HRC45
40T	HB271-322(HRC26-34) CORE min=238HB	HRC48-58	Depth min=7mm/HRC45 Radius depth min=3mm/HRC45
30T	HB271-322(HRC26-34) CORE min=238HB	HRC48-58	Depth min=7mm/HRC45 Radius depth min=3mm/HRC45
20T	HB271-322(HRC26-34) CORE min=238HB	HRC48-58	Depth min=7mm/HRC45 Radius depth min=3mm/HRC45
10T	HB271-322(HRC26-34) CORE min=238HB	HRC48-58	Depth min=7mm/HRC45 Radius depth min=3mm/HRC45
6T	HB271-322(HRC26-34) CORE min=238HB	HRC48-58	Depth min=7mm/HRC45 Radius depth min=3mm/HRC45
