The JALE10-1 Mini Excavators

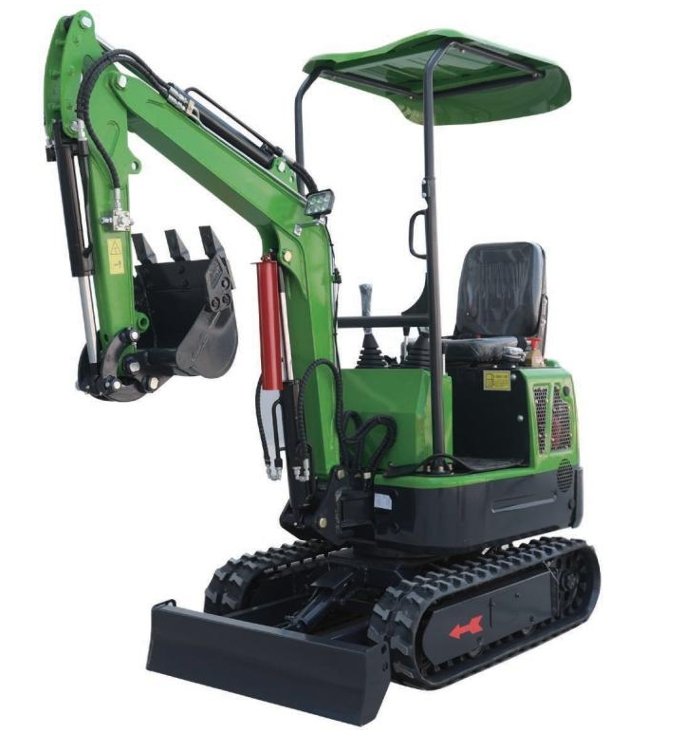

The JALE10-1 is a robust and compact excavator with a total machine weight of 900 kg. It is powered by a Koop192 F / BRIGGS & STRATTON engine, delivering 7 kW (13.5 HP). The machine features a two-legs roof design for operator protection and measures 2650 mm in length, 940 mm in width, and 2280 mm in height. It offers a maximum digging depth of 1650 mm, a maximum digging height of 2490 mm, and a maximum unloading height of 1750 mm. The excavator is equipped with tracks that are 180 mm wide and 320 mm tall, providing stability and traction across various terrains.

Specification                                                 Details

Machine Weight                                           900 KGS

Engine Type                                                  Koop192 F / BRIGGS & STRATTON

Engine Power                                               7 KW / 13.5 HP

Roof Type                                                     Two Legs Roof

Machine Size                                                2650 x 940 x 2280 mm

Maximum Digging Depth                           1650 mm

Maximum Digging Height                          2490 mm

Maximum Unloading Height                     1750 mm

Track Width                                                  180 mm

Track Height                                                 320 mm
