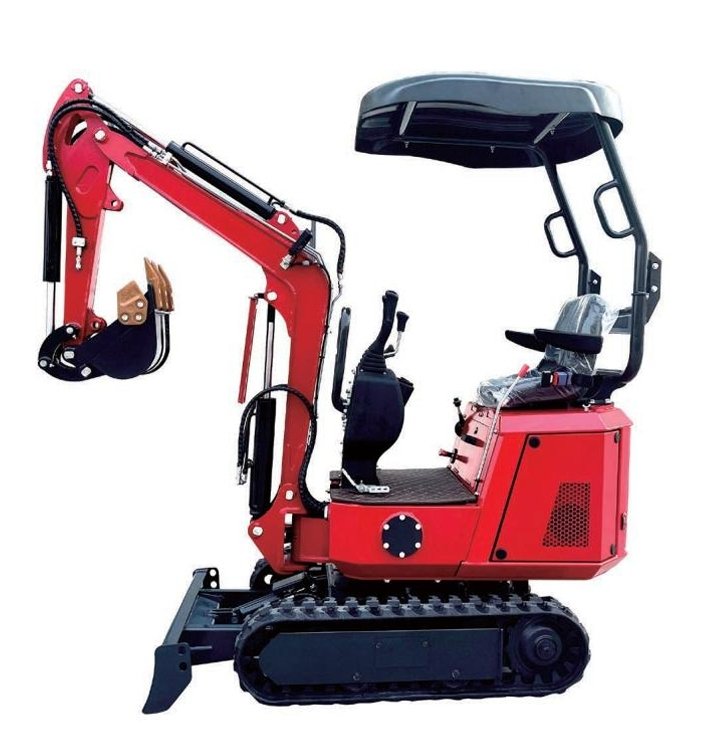

The JALE12-3 Mini Excavators

The JALE12-3 is a lightweight compact excavator weighing 1000 kg. It offers a selection of engines, including the Koop 192F, Briggs & Stratton, Kubota D722, and Yanmar 370, with power outputs from 7 kW to 10.2 kW (10–13.5 HP). It is equipped with a two-legs roof and has overall dimensions of 2650 mm in length, 940 mm in width, and 2280 mm in height. This model features a significantly enhanced maximum digging depth of 4650 mm and a maximum unloading height of 4750 mm, while retaining a maximum digging height of 2490 mm. It runs on tracks measuring 180 mm in width and 320 mm in height.

Specification Category                                Details

Model                                                            JALE12-3

Machine Weight                                          1000 kg

Engine Type                                                  Koop 192F / Briggs & Stratton / Kubota D722 / Yanmar 370

Engine Power                                               7 kW / 13.5 HP / 10.2 kW / 10 kW

Roof Type                                                      Two legs roof

Machine Size (L×W×H)                                2650 × 940 × 2280 mm

Max Digging Depth                                      4650 mm

Max Digging Height                                     2490 mm

Max Unloading Height                                4750 mm

Track Width                                                 180 mm

Track Height                                                 320 mm
